Tutorial: Build a todo manager

In this tutorial, we will build a todo manager MCP server with user authentication and authorization.

After completing this tutorial, you will have:

  • ✅ A basic understanding of how to set up role-based access control (RBAC) in your MCP server.
  • ✅ A MCP server that can manage personal todo lists.
note

Before you start, we strongly recommend you to go through the Who am I tutorial first if you are not familiar with MCP server and OAuth 2.

Overview​

The tutorial will involve the following components:

  • MCP server: A simple MCP server that uses MCP official SDKs to handle requests, with an integrated Todo service for managing user's todo items.
  • MCP inspector: A visual testing tool for MCP servers. It also acts as an OAuth / OIDC client to initiate the authorization flow and retrieve access tokens.
  • Authorization server: An OAuth 2.1 or OpenID Connect provider that manages user identities and issues access tokens.

Here's a high-level diagram of the interaction between these components:

Understand your authorization server​

Access tokens with scopes​

To implement role-based access control (RBAC) in your MCP server, your authorization server needs to support issuing access tokens with scopes. Scopes represent the permissions that a user has been granted.

Logto provides RBAC support through its API resources (conforming RFC 8707: Resource Indicators for OAuth 2.0) and roles features. Here's how to set it up:

  1. Sign in to Logto Console (or your self-hosted Logto Console)

  2. Create API resource and scopes:

    • Go to "API Resources"
    • Create a new API resource named "Todo Manager"
    • Add the following scopes:
      • create:todos: "Create new todo items"
      • read:todos: "Read all todo items"
      • delete:todos: "Delete any todo item"

  3. Create roles (recommended for easier management):

    • Go to "Roles"
    • Create an "Admin" role and assign all scopes (create:todos, read:todos, delete:todos)
    • Create a "User" role and assign only the create:todos scope

  4. Assign permissions:

    • Go to "Users"
    • Select a user
    • You can either:
      • Assign roles in the "Roles" tab (recommended)
      • Or directly assign scopes in the "Permissions" tab

The scopes will be included in the JWT access token's scope claim as a space-separated string.

Validating tokens and checking permissions​

When your MCP server receives a request, it needs to:

  1. Validate the access token's signature and expiration
  2. Extract the scopes from the validated token
  3. Check if the token has the required scopes for the requested operation

For example, if a user wants to create a new todo item, their access token must include the create:todos scope. Here's how the flow works:

Dynamic Client Registration​

Dynamic Client Registration is not required for this tutorial, but it can be useful if you want to automate the MCP client registration process with your authorization server. Check Is Dynamic Client Registration required? for more details.

Understand RBAC in todo manager​

For demonstration purposes, we'll implement a simple role-based access control (RBAC) system in our todo manager MCP server. This will show you the basic principles of RBAC while keeping the implementation straightforward.

note

While this tutorial demonstrates RBAC-based scope management, it's important to note that not all authentication providers implement scope management through roles. Some providers may have their own unique implementations and mechanisms for managing access control and permissions.

Tools and scopes​

Our todo manager MCP server provides three main tools:

  • create-todo: Create a new todo item
  • get-todos: List all todos
  • delete-todo: Delete a todo by ID

To control access to these tools, we define the following scopes:

  • create:todos: Allows creating new todo items
  • delete:todos: Allows deleting existing todo items
  • read:todos: Allows querying and retrieving the list of all todo items

Roles and permissions​

We'll define two roles with different levels of access:

Rolecreate:todosread:todosdelete:todos
Admin✅✅✅
User✅
  • User: A regular user who can create todo items and view or delete only their own todos
  • Admin: An administrator who can create, view, and delete all todo items, regardless of ownership

Resource ownership​

While the permission table above shows the explicit scopes assigned to each role, there's an important principle of resource ownership to consider:

  • Users don't have the read:todos or delete:todos scopes, but they can still:

    • Read their own todo items
    • Delete their own todo items

  • Admins have full permissions (read:todos and delete:todos), allowing them to:

    • View all todo items in the system
    • Delete any todo item, regardless of ownership

This demonstrates a common pattern in RBAC systems where resource ownership grants implicit permissions to users for their own resources, while administrative roles receive explicit permissions for all resources.

Learn More

To dive deeper into RBAC concepts and best practices, check out Mastering RBAC: A Comprehensive Real-World Example.

Configure authorization in your provider​

To implement the access control system we described earlier, you'll need to configure your authorization server to support the required scopes. Here's how to do it with different providers:

Logto provides RBAC support through its API resources and roles features. Here's how to set it up:

  1. Sign in to Logto Console (or your self-hosted Logto Console)

  2. Create API resource and scopes:

    • Go to "API Resources"
    • Create a new API resource named "Todo Manager" and using https://todo.mcp-server.app (demo purpose) as the indicator.
    • Create the following scopes:
      • create:todos: "Create new todo items"
      • read:todos: "Read all todo items"
      • delete:todos: "Delete any todo item"

  3. Create roles (recommended for easier management):

    • Go to "Roles"
    • Create an "Admin" role and assign all scopes (create:todos, read:todos, delete:todos)
    • Create a "User" role and assign only the create:todos scope
    • In the "User" role's details page, switch to the "General" tab, and set the "User" role as the "Default role".

  4. Manage user roles and permissions:

    • For new users:
      • They will automatically get the "User" role since we set it as the default role
    • For existing users:
      • Go to "User management"
      • Select a user
      • Assign roles for the user in the "Roles" tab
Programmatic Role Management

You can also use Logto's Management API to programmatically manage user roles. This is particularly useful for automated user management or when building admin panels.

When requesting an access token, Logto will include scopes in the token's scope claim based on the user's role permissions.

After configuring your authorization server, users will receive access tokens containing their granted scopes. The MCP server will use these scopes to determine:

  • Whether a user can create new todos (create:todos)
  • Whether a user can view all todos (read:todos) or only their own
  • Whether a user can delete any todo (delete:todos) or only their own

Set up the MCP server​

We will use the MCP official SDKs to create our todo manager MCP server.

Create a new project​

mkdir mcp-server
cd mcp-server
uv init # Or use `pipenv` or `poetry` to create a new virtual environment

Install the MCP SDK and dependencies​

pip install "mcp[cli]" starlette uvicorn

Or any other package manager you prefer, such as uv or poetry.

Create the MCP server​

First, let's create a basic MCP server with the tool definitions:

Create a file named todo-manager.py and add the following code:

from typing import Any
from mcp.server.fastmcp import FastMCP
from starlette.applications import Starlette
from starlette.routing import Mount

mcp = FastMCP("Todo Manager")

@mcp.tool()
def create_todo(content: str) -> dict[str, Any]:
    """Create a new todo."""
    return {"error": "Not implemented"}

@mcp.tool()
def get_todos() -> dict[str, Any]:
    """List all todos."""
    return {"error": "Not implemented"}

@mcp.tool()
def delete_todo(id: str) -> dict[str, Any]:
    """Delete a todo by id."""
    return {"error": "Not implemented"}

app = Starlette(
    routes=[Mount('/', app=mcp.sse_app())]
)

Run the server with:

uvicorn todo_manager:app --host 0.0.0.0 --port 3001

Inspect the MCP server​

Clone and run MCP inspector​

Now that we have the MCP server running, we can use the MCP inspector to see if the whoami tool is available.

Due to the limit of the current implementation, we've forked the MCP inspector to make it more flexible and scalable for authentication and authorization. We've also submitted a pull request to the original repository to include our changes.

To run the MCP inspector, you can use the following command (Node.js is required):

git clone https://github.com/mcp-auth/inspector.git
cd inspector
npm install
npm run dev

Then, open your browser and navigate to http://localhost:6274/ (or other URL shown in the terminal) to access the MCP inspector.

Connect MCP inspector to the MCP server​

Before we proceed, check the following configuration in MCP inspector:

  • Transport Type: Set to SSE.
  • URL: Set to the URL of your MCP server. In our case, it should be http://localhost:3001/sse.

Now you can click the "Connect" button to see if the MCP inspector can connect to the MCP server. If everything is okay, you should see the "Connected" status in the MCP inspector.

Checkpoint: Run todo manager tools​

  1. In the top menu of the MCP inspector, click on the "Tools" tab.
  2. Click on the "List Tools" button.
  3. You should see the create-todo, get-todos, and delete-todo tools listed on the page. Click on it to open the tool details.
  4. You should see the "Run Tool" button in the right side. Click on it and enter required parameters to run the tool.
  5. You should see the tool result with the JSON response {"error": "Not implemented"}.

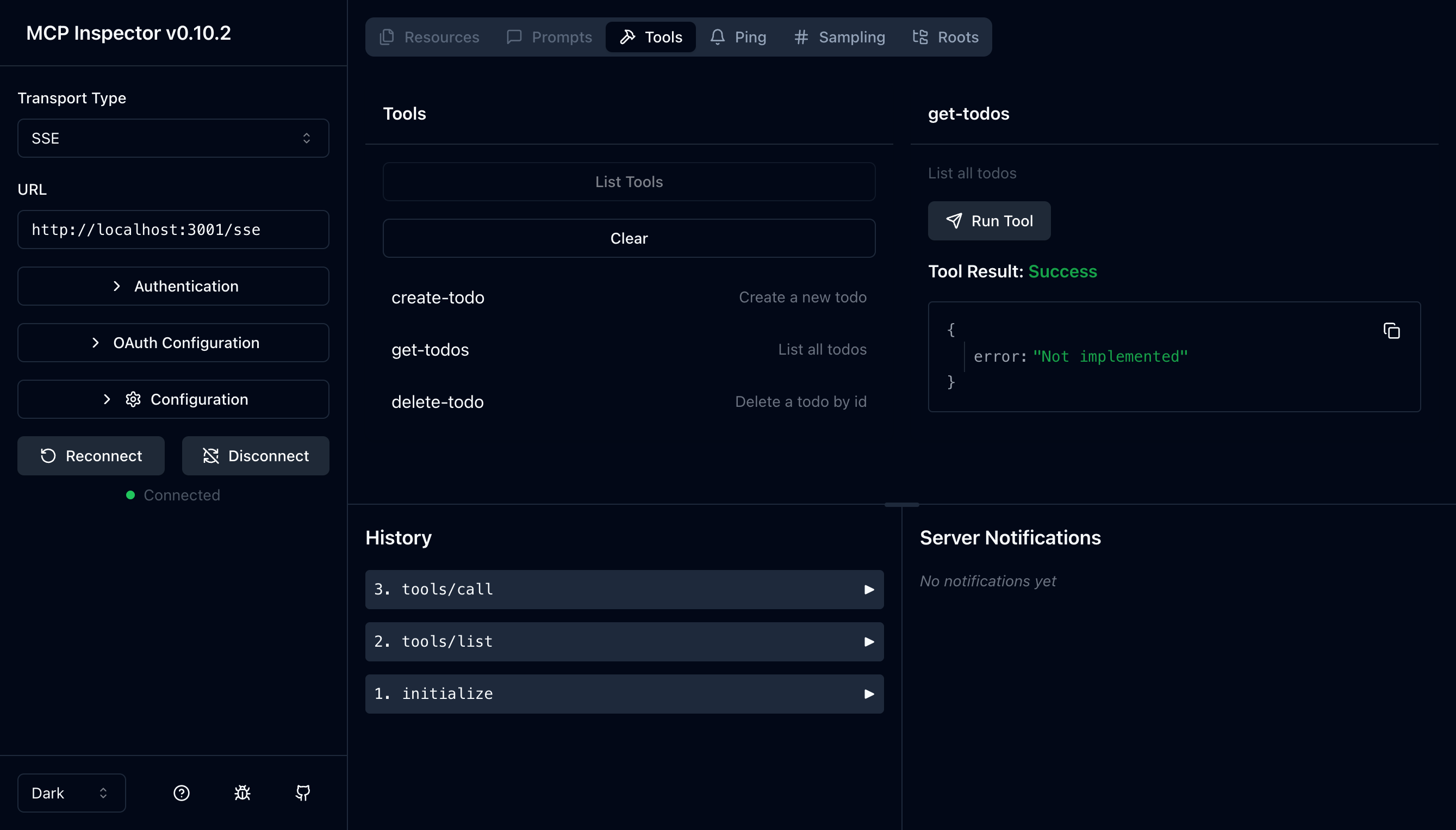

MCP inspector first run

Integrate with your authorization server​

To complete this section, there are several considerations to take into account:

The issuer URL of your authorization server

This is usually the base URL of your authorization server, such as https://auth.example.com. Some providers may have a path like https://example.logto.app/oidc, so make sure to check your provider's documentation.

How to retrieve the authorization server metadata
  • If your authorization server conforms to the OAuth 2.0 Authorization Server Metadata or OpenID Connect Discovery, you can use the MCP Auth built-in utilities to fetch the metadata automatically.
  • If your authorization server does not conform to these standards, you will need to manually specify the metadata URL or endpoints in the MCP server configuration. Check your provider's documentation for the specific endpoints.
How to register the MCP inspector as a client in your authorization server
  • If your authorization server supports Dynamic Client Registration, you can skip this step as the MCP inspector will automatically register itself as a client.
  • If your authorization server does not support Dynamic Client Registration, you will need to manually register the MCP inspector as a client in your authorization server.
Understand token request parameters

When requesting access tokens from different authorization servers, you'll encounter various approaches for specifying the target resource and permissions. Here are the main patterns:

  • Resource indicator based:

    • Uses the resource parameter to specify the target API (see RFC 8707: Resource Indicators for OAuth 2.0)
    • Common in modern OAuth 2.0 implementations
    • Example request:
      {
  "resource": "https://todo.mcp-server.app",
  "scope": "create:todos read:todos"
}
    • The server issues tokens specifically bound to the requested resource

  • Audience based:

    • Uses the audience parameter to specify the intended token recipient
    • Similar to resource indicators but with different semantics
    • Example request:
      {
  "audience": "todo-api",
  "scope": "create:todos read:todos"
}

  • Pure scope based:

    • Relies solely on scopes without resource/audience parameters
    • Traditional OAuth 2.0 approach
    • Example request:
      {
  "scope": "todo-api:create todo-api:read openid profile"
}
    • Often uses prefixed scopes to namespace permissions
    • Common in simpler OAuth 2.0 implementations
Best Practices
  • Check your provider's documentation for supported parameters
  • Some providers support multiple approaches simultaneously
  • Resource indicators provide better security through audience restriction
  • Consider using resource indicators when available for better access control

While each provider may have its own specific requirements, the following steps will guide you through the process of integrating the MCP inspector and MCP server with provider-specific configurations.

Register MCP inspector as a client​

Integrating the todo manager with Logto is straightforward as it's an OpenID Connect provider that supports resource indicators and scopes, allowing you to secure your todo API with https://todo.mcp-server.app as the resource indicator.

Since Logto does not support Dynamic Client Registration yet, you will need to manually register the MCP inspector as a client in your Logto tenant:

  1. Open your MCP inspector, click on the "OAuth Configuration" button. Copy the Redirect URL (auto-populated) value, which should be something like http://localhost:6274/oauth/callback.
  2. Sign in to Logto Console (or your self-hosted Logto Console).
  3. Navigate to the "Applications" tab, click on "Create application". In the bottom of the page, click on "Create app without framework".
  4. Fill in the application details, then click on "Create application":
    • Select an application type: Choose "Single-page application".
    • Application name: Enter a name for your application, e.g., "MCP Inspector".
  5. In the "Settings / Redirect URIs" section, paste the Redirect URL (auto-populated) value you copied from the MCP inspector. Then click on "Save changes" in the bottom bar.
  6. In the top card, you will see the "App ID" value. Copy it.
  7. Go back to the MCP inspector and paste the "App ID" value in the "OAuth Configuration" section under "Client ID".
  8. Enter the value {"scope": "create:todos read:todos delete:todos", "resource": "https://todo.mcp-server.app"} in the "Auth Params" field. This will ensure that the access token returned by Logto contains the necessary scopes to access the todo manager.

Set up MCP auth​

In your MCP server project, you need to install the MCP Auth SDK and configure it to use your authorization server metadata.

First, install the mcpauth package:

pip install mcpauth

Or any other package manager you prefer, such as uv or poetry.

MCP Auth requires the authorization server metadata to be able to initialize. Depending on your provider:

The issuer URL can be found in your application details page in Logto Console, in the "Endpoints & Credentials / Issuer endpoint" section. It should look like https://my-project.logto.app/oidc.

Update the todo-manager.py to include the MCP Auth configuration:

from mcpauth import MCPAuth
from mcpauth.config import AuthServerType
from mcpauth.utils import fetch_server_config

auth_issuer = '<issuer-endpoint>'  # Replace with your issuer endpoint
auth_server_config = fetch_server_config(auth_issuer, type=AuthServerType.OIDC)
mcp_auth = MCPAuth(server=auth_server_config)

Update the todo-manager.py to include the MCP Auth configuration:

from mcpauth import MCPAuth
from mcpauth.config import AuthServerType
from mcpauth.utils import fetch_server_config

auth_issuer = '<issuer-endpoint>'  # Replace with your issuer endpoint
auth_server_config = fetch_server_config(auth_issuer, type=AuthServerType.OIDC)
mcp_auth = MCPAuth(server=auth_server_config)

Update MCP server​

We are almost done! It's time to update the MCP server to apply the MCP Auth route and middleware function, then implement the permission-based access control for the todo manager tools based on the user's scopes.

@mcp.tool()
def create_todo(content: str) -> dict[str, Any]:
    """Create a new todo."""
    return (
        mcp_auth.auth_info.scopes
        if mcp_auth.auth_info # This will be populated by the Bearer auth middleware
        else {"error": "Not authenticated"}
    )

# ...

bearer_auth = Middleware(mcp_auth.bearer_auth_middleware("jwt"))
app = Starlette(
    routes=[
        # Add the metadata route (`/.well-known/oauth-authorization-server`)
        mcp_auth.metadata_route(),
        # Protect the MCP server with the Bearer auth middleware
        Mount('/', app=mcp.sse_app(), middleware=[bearer_auth]),
    ],
)

Next, let's implement the specific tools.

First, let's create a simple todo service to provide basic CRUD operations for managing todo items in memory.

# todo-service.py

from dataclasses import dataclass
from datetime import datetime
from typing import Optional
import random
import string

@dataclass
class Todo:
    id: str
    content: str
    owner_id: str
    created_at: str

class TodoService:
    """A simple Todo service for demonstration purposes.
    Use an in-memory array to store todos
    """
    def __init__(self):
        self.todos: list[Todo] = []

    def get_all_todos(self, owner_id: Optional[str] = None) -> list[Todo]:
        if owner_id:
            return [todo for todo in self.todos if todo.owner_id == owner_id]
        return self.todos

    def get_todo_by_id(self, id: str) -> Optional[Todo]:
        return next((todo for todo in self.todos if todo.id == id), None)

    def create_todo(self, content: str, owner_id: str) -> Todo:
        todo = Todo(
            id=self._gen_id(),
            content=content,
            owner_id=owner_id,
            created_at=datetime.now().isoformat()
        )
        self.todos.append(todo)
        return todo

    def delete_todo(self, id: str) -> Optional[Todo]:
        for i, todo in enumerate(self.todos):
            if todo.id == id:
                return self.todos.pop(i)
        return None

    def _gen_id(self) -> str:
        """Generate a random 8-character string for todo ID."""
        return ''.join(random.choices(string.ascii_lowercase + string.digits, k=8))

then in the tools layer, we'll determine whether operations are allowed based on the user's scopes:

# todo-manager.py

from typing import Any, Optional
from mcpauth.errors import MCPAuthBearerAuthError

def assert_user_id(auth_info: Optional[dict]) -> str:
    """Extract and validate user ID from auth info."""
    subject = auth_info.get('subject') if auth_info else None
    if not subject:
        raise ValueError('Invalid auth info')
    return subject

def has_required_scopes(user_scopes: list[str], required_scopes: list[str]) -> bool:
    """Check if user has all required scopes."""
    return all(scope in user_scopes for scope in required_scopes)

# Create an instance of TodoService
todo_service = TodoService()

@mcp.tool()
def create_todo(content: str) -> dict[str, Any]:
    """Create a new todo.

    Only users with 'create:todos' scope can create todos.
    """
    # Get authentication info
    auth_info = mcp_auth.auth_info

    # Validate user ID
    try:
        user_id = assert_user_id(auth_info)
    except ValueError as e:
        return {"error": str(e)}

    # Check if user has the required permissions
    if not has_required_scopes(auth_info.scopes if auth_info else [], ['create:todos']):
        raise MCPAuthBearerAuthError('missing_required_scopes')

    # Create new todo
    created_todo = todo_service.create_todo(content=content, owner_id=user_id)

    # Return the created todo
    return created_todo.__dict__

# ...

You can check our sample code for all other detailed implementations.

Checkpoint: Run the todo-manager tools​

Restart your MCP server and open the MCP inspector in your browser. When you click the "Connect" button, you should be redirected to your authorization server's sign-in page.

Once you sign in and back to the MCP inspector, repeat the actions we did in the previous checkpoint to run todo manager tools. This time, you can use these tools with your authenticated user identity. The behavior of the tools will depend on the roles and permissions assigned to your user:

  • If you're logged in as a User (with only create:todos scope):

    • You can create new todos using the create-todo tool
    • You can only view and delete your own todos
    • You won't be able to see or delete other users' todos

  • If you're logged in as an Admin (with all scopes: create:todos, read:todos, delete:todos):

    • You can create new todos
    • You can view all todos in the system using the get-todos tool
    • You can delete any todo using the delete-todo tool, regardless of who created it

You can test these different permission levels by:

  1. Signing out of the current session (click the "Disconnect" button in MCP inspector)
  2. Signing in with a different user account that has different roles/permissions
  3. Trying the same tools again to observe how the behavior changes based on the user's permissions

This demonstrates how role-based access control (RBAC) works in practice, where different users have different levels of access to the system's functionality.

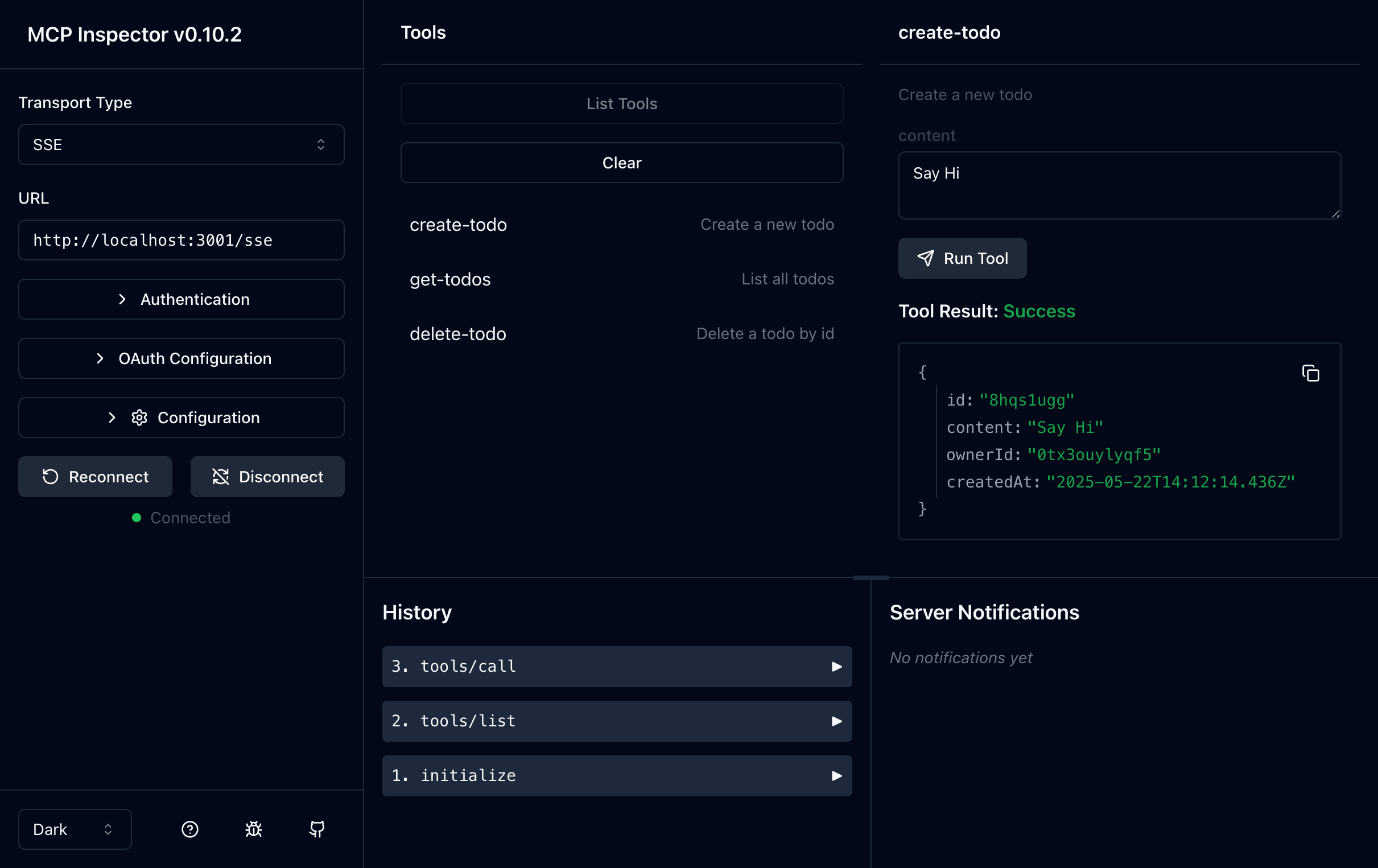

MCP inspector todo manager tool result

info

Check out the MCP Auth Python SDK repository for the complete code of the MCP server (OIDC version).

Closing notes​

🎊 Congratulations! You have successfully completed the tutorial. Let's recap what we've done:

  • Setting up a basic MCP server with todo management tools (create-todo, get-todos, delete-todo)
  • Implementing role-based access control (RBAC) with different permission levels for users and admins
  • Integrating the MCP server with an authorization server using MCP Auth
  • Configuring the MCP Inspector to authenticate users and use access tokens with scopes to call tools

Be sure to check out other tutorials and documentation to make the most of MCP Auth.
